TS165
7â€/180MM DYMODRILL
Application and Features
アプリケーションと機能
- Ideal machine for small-middle size jobs.

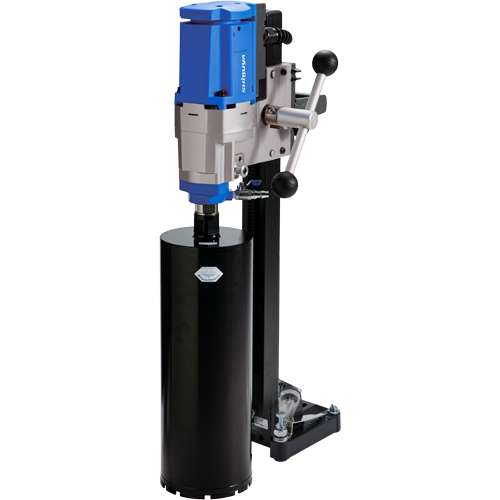

- Two motor available: H1521 (Normal) / H1522 (for small diameter with higher rev).
- Normal Stand Column: 803 mm (31â€) with 545 mm(21â€) stroke.
- AB52 Column: 1011 mm (40â€) with 715 mm (28â€) stroke.
- Case Version Column: 793 mm (31â€) with 497 or 535 mm (20†or 21â€) stroke. (extension 200mm column in use)
- 50 mm (2â€) square column.
- Includes a water collector ring.
Product Specification
| Model | TS165FS | TS165AS | TS165FSC |
|---|---|
| Motor Model | H1522 | H1522 | H1521 |
| Power Rated (WATT) | 2,100 | 2,100 | 2,100 |
| No Load Speed (RPM) | 850 / 1,750 | 850 / 1,750 | 750 / 1,150 |
| Rated Load Speed (RPM) | 470 / 970 | 470 / 970 | 520 / 790 |
| Preferred Core Bit Dia. (MM) | 20 – 180 | 20 – 180 | 25 – 180 |
| Base Type | Fixed Anchor | Swivel Anchor (AB52) | Fixed Anchor |
| Base Size (MM) | 146 x 205 | 146 x 205 | 146 x 205 |
| Column Height (MM) | 803 | 1011 | 793 |
| Travel Length (MM) | 545 | 715 | 497 |
| Weight (KG) | 14.6 | 16.9 | 16.2 |
