TS095
4â€/120MM DYMODRILL
Application and Features
アプリケーションと機能
- Compact and light yet powerful 1,600W machine for limited space jobs.
- Two motor available: H1011 (Normal) /H1012 (for small diameter with higher rev).
- Angle drill stand (45 degree backward) as standard accessory.
- Normal Stand Column: 805 mm (31â€) with 558 mm(22â€) stroke.

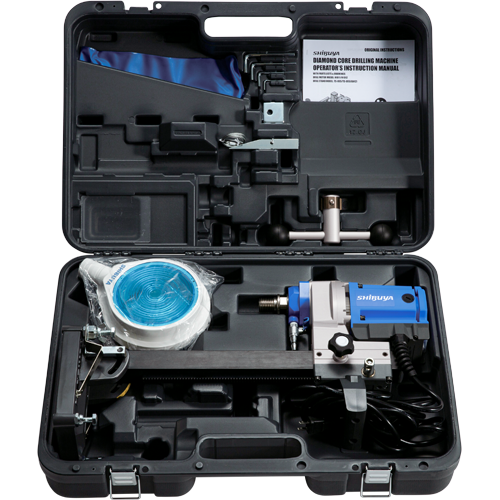

- Case version Stand Column: 568 mm (22â€) with 320mm (12â€) stroke. 40 mm (1-5/8â€) square column.
- Includes a water collector ring.
- Optional spindle adaptor available.
Product Specification
| Model | TS095AS | TS095HAS | TS095ASC |
|---|---|
| Motor Model | H1011 | H1012 | H1011 |
| Power Rated (WATT) | 1,600 | 1,600 | 1,600 |
| No Load Speed (RPM) | 1,100 | 2,000 | 1,100 |
| Rated Load Speed (RPM) | 740 | 1,310 | 740 |
| Preferred Core Bit Dia. (MM) | 60 – 120 | 20 – 60 | 60 – 120 |
| Base Type | Swivel Anchor(AB42) | Swivel Anchor(AB42) | Swivel Anchor(AB42) |
| Base Size (MM) | 146 x 200 | 146 x 200 | 146 x 200 |
| Column Height (MM) | 800 | 800 | 560 |
| Travel Length (MM) | 557.5 | 557.5 | 320 |
| Weight (KG) | 8.1 | 9.6 | 8.9 |
