SSS

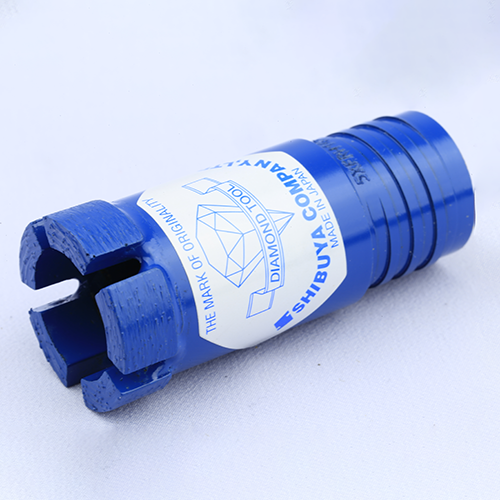

3 Piece Type Diamond Bit
Application and Features
アプリケーションと機能

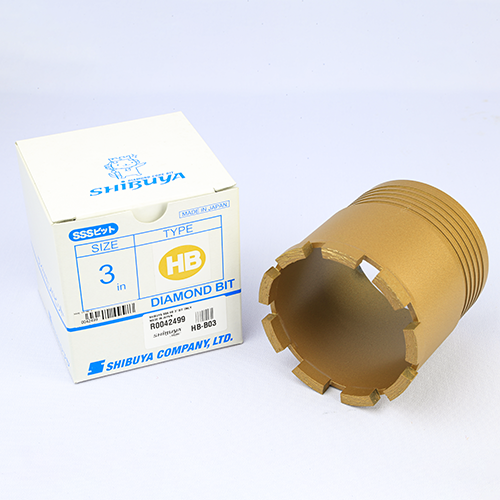

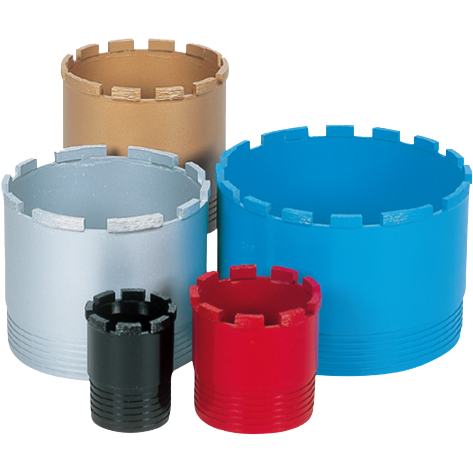

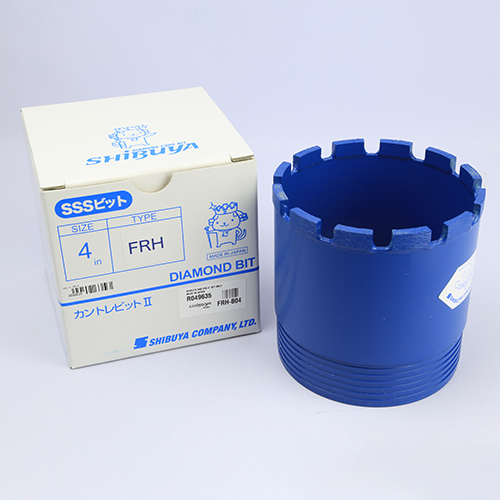

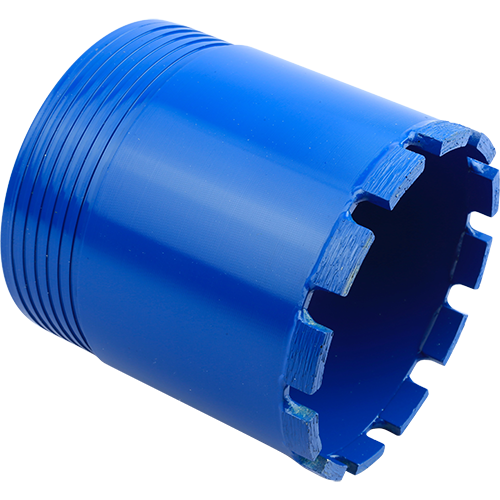

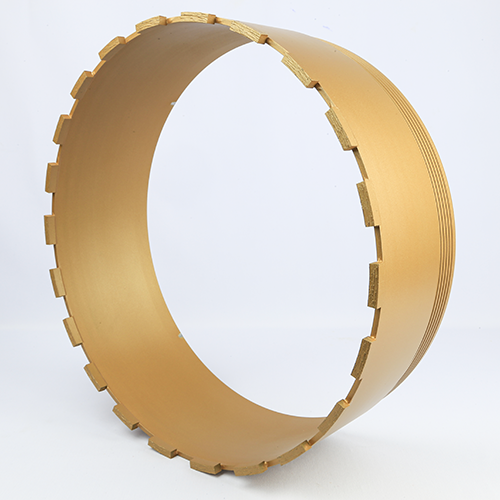

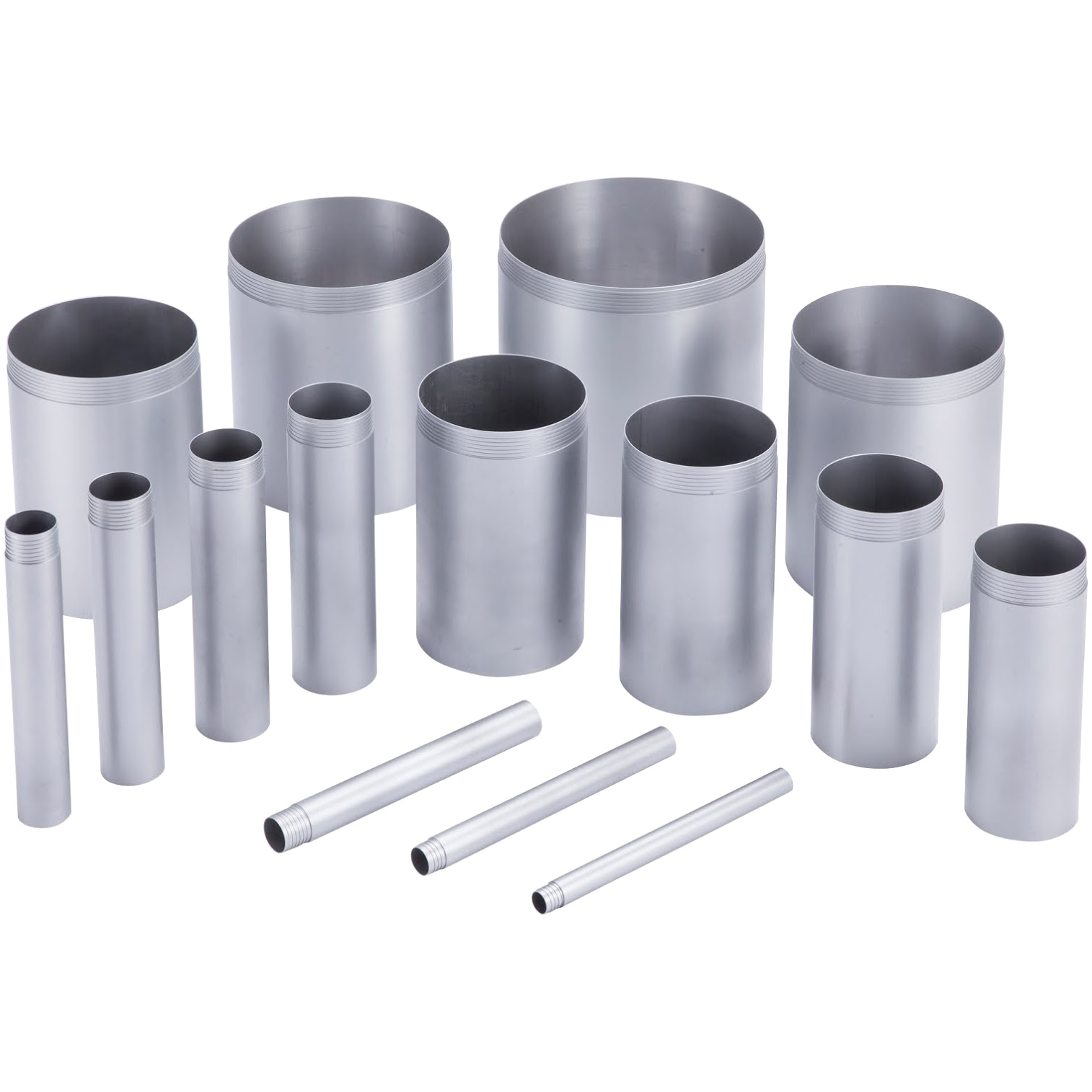

- 3 piece diamond bit which consists of the bit, tube and adapter. 5 selected segment bond types. The total length comes up to around 350mm ( Bit + Standard Tube + Adapter ). Spindle thread for the adapter : A-Rod or UNC 1 -1/4â€. Best matched with models TS-252 and above.

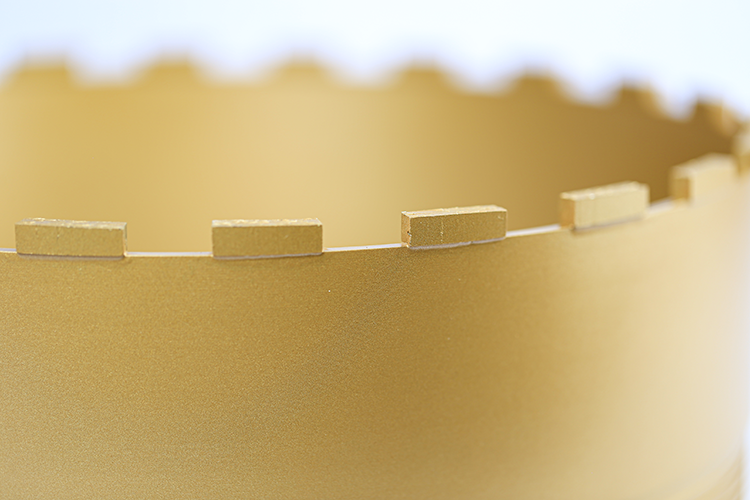

- 5 selected segment bond types. The total length comes up to around 350mm ( Bit + Standard Tube + Adapter ). Spindle thread for the adapter : A-Rod or UNC 1 -1/4â€. Best matched with models TS-252 and above.
- The total length comes up to around 350mm ( Bit + Standard Tube + Adapter ). Spindle thread for the adapter : A-Rod or UNC 1 -1/4â€. Best matched with models TS-252 and above.

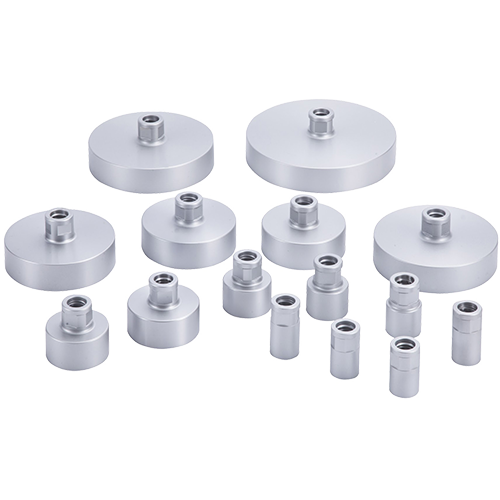

- Spindle thread for the adapter : A-Rod or UNC 1 -1/4â€. Best matched with models TS-252 and above.
- Best matched with models TS-252 and above.
Product Specification
| OUTER DIAMETER (INCH) | EFFECTIVE DRILLING DEPTH |
|---|---|
| 1 | 34 mm |
| 1-1/4 | 34 mm |
| 1-1/2 | 35 mm |
| 2 | 35 mm |
| 2-1/2 | 40 mm |
| 3 | 40 mm |
| 3-1/2 | 40 mm |
| 4 | 70 mm |
| 5 | 70 mm |
| 6 | 70 mm |
| 7 | 70 mm |
| 8 | 70 mm |
| 9 | 70 mm |
| 10 | 70 mm |
| 11 | 70 mm |
| 12 | 70 mm |
