RH1531
HANDHELD DYMODRILL
Application and Features
アプリケーションと機能
- Compact three-speed gearbox with high, medium, and low speed.
- Weights only 6.5 Kg (15 lbs).
- D-style handle for ergonomic control.
- Multi-position front handle.

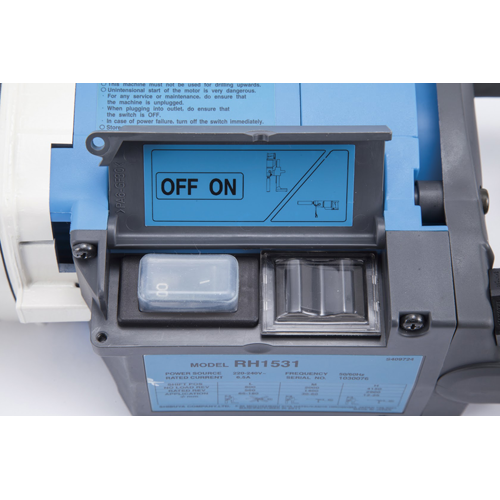

- Built-in on/off switch with low voltage drop-out and motor overload protection.
- Portable Residual Current Device (P.R.C.D.)
- automatically shuts off electricity in the event of electric leakage.

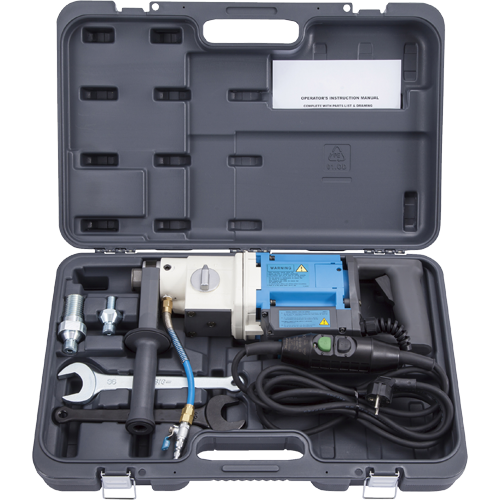

- Tool kit including a wrench.
- Optional spindle adaptors for each countries’circumstances.
Product Specification
| Model | RH1531 |
|---|---|
| Motor Model | RH1531 |
| Power Rated (WATT) | 1,500 |
| No Load Speed (RPM) | 800 / 2,000 / 4,150 |
| Rated Load Speed (RPM) | 560 / 1,400 / 2,900 |
| Preferred Core Bit Dia. (MM) | 14.5 – 180 |
| Installation Type | Handheld |
| Weight (KG) | 6.5 Excl. Power cord and plug |
