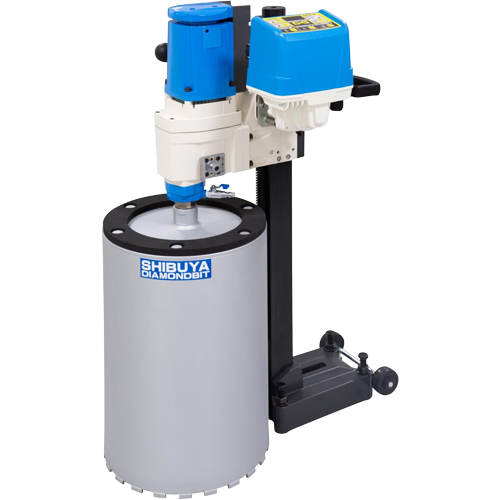

AVF-V
AUTOMATIC FEEDING SYSTEM 自動é€ã‚Šè£…ç½®
Application and Features
アプリケーションと機能
- Feeds the drill motor automatically.
- Detect the load of the drill motor and automatically adjust the feeding speed.
- Mountable on both right and left side of the carriage block.
- Automatically shuts off when the core bit penetrates the working material.
Product Specification
| Model | AFS-V |
|---|---|
| Voltage | 220 – 240V |
| Power Rated (WATT) | 40 |
| Dimension (MM) | 196(W) X 258(L) X 268(H) |
| Weight(KG) | 6.9 |
| Compatible Model | TS402 / TS403 / TS603 |
Optional Parts

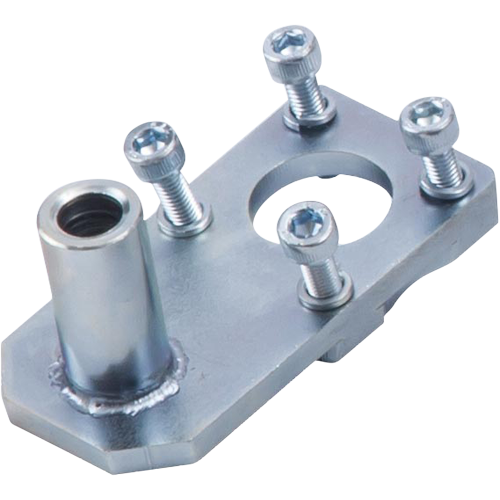

Adaptor Plate For TS402 / TS403
Adaptor plate for mounting AVF-V to TS402 / TS403. Included accessory.

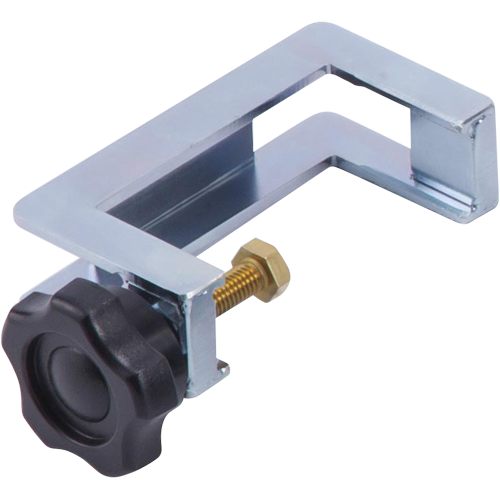

Stopper
Optional accessory stopper for the AVF-V automatic feeding system.
